---Description
Flame-Retardant, Anti-Static, Oil-Resistant, Cold-Resistant, Corrosion-Resistant, Heat-Resistant, Alkali-Resistant, Skid-Resistance, Wear-Resistant, Acid-Resistant, High Temperature-Resistance.
---Characteristics
1. Top Fabric: Polyester cotton canvas (Protect the lining tensile member).
2. Buffer Rubber: CR/EPDM (Support and protect the adhesive force of the tensile member).
3. Tensile Member: Polyester ( critical material to pass the dynamic force and endure high shock load).
4. Bottom Rubber: CR/EPDM ( Maintain the shape of the rubber and improve its side compression and wearability).
---Type
| Type | Ribsection (mm) | Belt thickness (mm) | Teeth thinckness (mm) | Rib numbers | Angle of rib (°) | Logo |
| PK | 3.56 | 7 | 3.2 | 3-100 | 40 | MISTUSHIKO |
| PJ | 2.34 | 4 | 2.1 | 3-160 | 40 | MISTUSHIKO |
| PL | 4.7 | 10 | 4.2 | 3-75 | 40 | MISTUSHIKO |
| PH | 1.6 | 3 | 1.33 | 3-54 | 40 | MISTUSHIKO |
---Standard Specifications

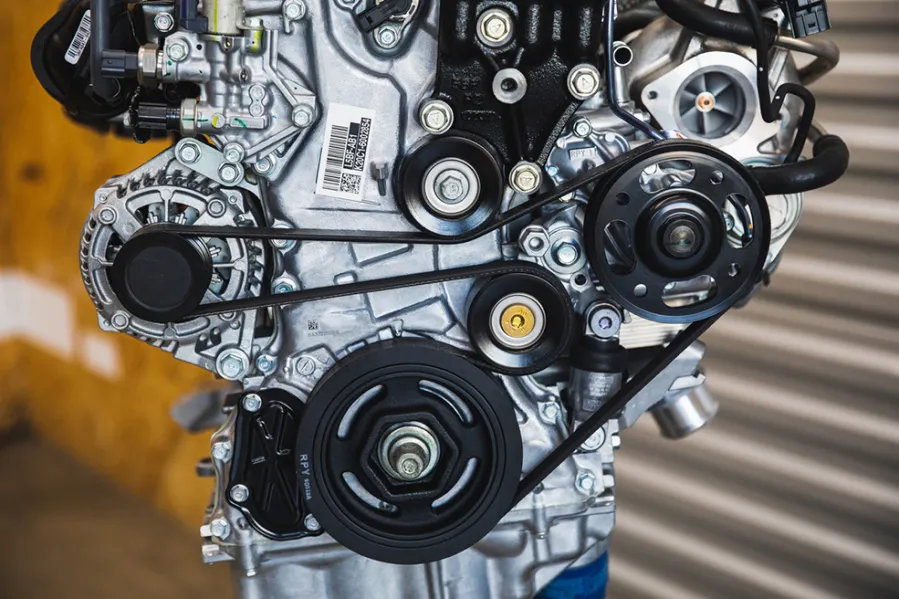

V ribbed belt is the combination of the merits of both v belt and flat belt. It has not only the soft and tenacious features of flat belt but also has compact and high efficient merits of v belt.
